Busbar systems

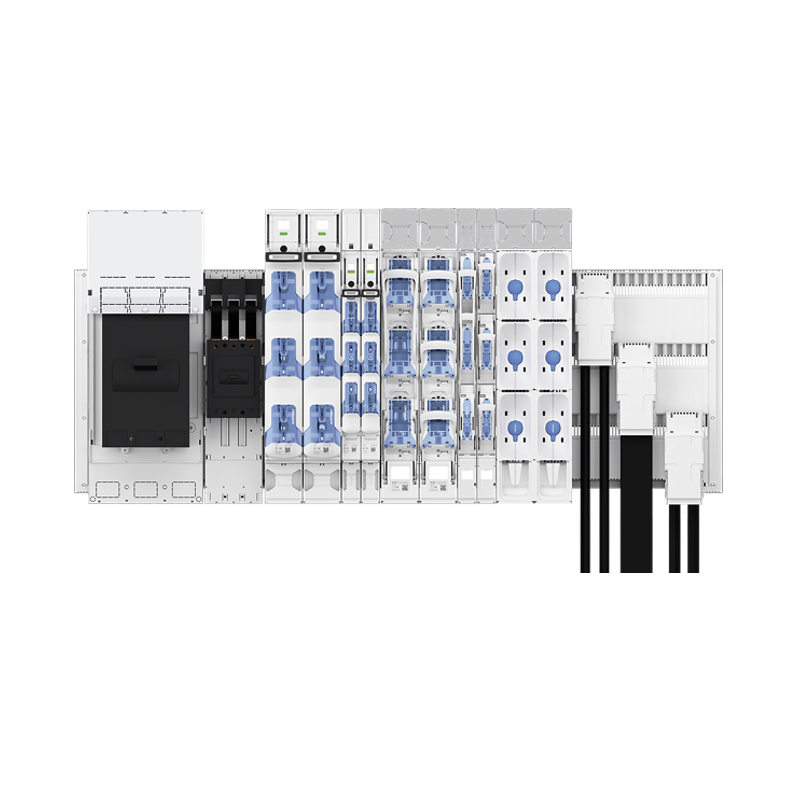

CrossBoard
All-round touch-safe protected busbar system
Very safe, space saving and clear design
Mounting of the components with no tools
UL approved
Very safe, space saving and clear design
Mounting of the components with no tools
UL approved
C60Classic 630A (830A) / 2500A
Wide range of busbars available even with its small dimension
Safe, saves space and clearly arranged in its design
Diverse mounting of a wide range of components
Many of the components comply with UL 508 requirements
Safe, saves space and clearly arranged in its design
Diverse mounting of a wide range of components
Many of the components comply with UL 508 requirements
185Power 2500A
New, modular and single-sourced
Discover a perfectly matched system complete with efficient components and maximum mounting friendliness.
Discover a perfectly matched system complete with efficient components and maximum mounting friendliness.
30Compact 200A / 360A
3 or 5 poles
Compact control and distribution
Number of components is kept to a minimum
Many 60Classic components can be used here as well
Developed especially for its use with MCBs
Wide variety of combinations possible with just a few modular components
Compact control and distribution
Number of components is kept to a minimum
Many 60Classic components can be used here as well
Developed especially for its use with MCBs
Wide variety of combinations possible with just a few modular components
100Energy 1250A
For use in power distribution assemblies with a high short-circuit withstand capacity
Compact distribution with NH in-line fuse switch disconnectors size 00
Drill-free assembly possible (with accessory)
Compact distribution with NH in-line fuse switch disconnectors size 00
Drill-free assembly possible (with accessory)
Centre feed unit 4000A
Clearly arranged design, drill-free assembly and electrical direct-contacting
Customised solutions thanks to a wide range of incoming connections
TCC section busbars offer even more connection possibilites
Short-circuit withstand capacity of up to 120 kA
Customised solutions thanks to a wide range of incoming connections
TCC section busbars offer even more connection possibilites
Short-circuit withstand capacity of up to 120 kA
Panel
Comprehensive range of panel components
Suitable for either mounting plate or DIN-rail
Meet the highest safety and quality requirements set by international standards
Can be used in photovoltaic systems
High switching capabilities
Safe, operator independent switching thanks to its snap action mechanism
Fuses can be changed easily and safe
Can be used as a mains disconnector
Rotary drive version for operating through a closed door
Suitable for either mounting plate or DIN-rail
Meet the highest safety and quality requirements set by international standards
Can be used in photovoltaic systems
High switching capabilities
Safe, operator independent switching thanks to its snap action mechanism
Fuses can be changed easily and safe
Can be used as a mains disconnector
Rotary drive version for operating through a closed door
Accessories
Special solutions and accessories for panel boards
Technical data and dimensions
General notes and operating conditions
